socket.io

whys and why nots

by Robert Oroszi (oroce)

DEMO: http://nbp.ngrok.com

Who am i?

@oroce

twitter github ten.izsoro@trebor

what is socket.io

what is socket.io

  • websocket abstraction with fallback support
  • client && server side library
  • multiple transports

http vs websocket

flickr

http vs websocket

flickr
<coding>
jump to </coding>

we are gonna use @gergelyke's nodeWHAT

.
npm install socket.io --save socket.io 0.9.X: https://github.com/LearnBoost/socket.io/tree/0.9

the original version


var http = require('http'),
    express = require('express'),
    fs = require('fs'),
    app = express();

app.use(express.static(__dirname + '/static'));

app.get('/', function(req, res) {
    res.send('nodeWHAT!?');
});

http.createServer(app).listen(3000, function (err) {
    if (err) return console.log(err);
});

wire socket.io


var http = require('http'),
    express = require('express'),
    fs = require('fs'),
    app = express(),
    sio = require('socket.io');

app.use(express.static(__dirname + '/static'));

app.get('/', function(req, res) {
    res.send('nodeWHAT!?');
});

var server = http.createServer(app);

var io = sio.listen(server);

server.listen(3000, function (err) {
    if (err) return console.log(err);
});



@@ -1,7 +1,8 @@
 var http = require('http'),
     express = require('express'),
     fs = require('fs'),
-    app = express();
+    app = express(),
+    sio = require('socket.io');

 app.use(express.static(__dirname + '/static'));

@@ -9,6 +10,9 @@ app.get('/', function(req, res) {
     res.send('nodeWHAT!?');
 });

-http.createServer(app).listen(3000, function (err) {
+var server = http.createServer(app);
+var io = sio.listen(server);
+
+server.listen(3000, function (err) {
     if (err) return console.log(err);
});

Run the server

npm start

Server should response to http://localhost:3000/socket.io



read more about npm start

now let's create a client

  1. we need a simple index.html file
  2. it'll be served by using express' built-in static middleware
  3. create a index.html file: ./static/index.html
  4. open http://localhost:3000/index.html
  5. socket.io client will be served at http://localhost:3000/socket.io/socket.io[.min].js
<script src="/socket.io/socket.io.js"></script>

connect to the server

var socket = io.connect();

send some messages

socket.io works like an EventEmitter on both client and server side

Server:wiki
connection*, message, disconnect


Client:wiki
connect, reconnect, message, disconnect, etc

events in socket.io

  • Socket#send emits message event
  • Socket#emit( "nodejsbp" ) emits nodejsbp event

receive connections


io.on('connection', function (socket){
  // `socket` is a connected client
});

listen for messages


socket.on('message',function (data){
  // client sent something awesome for us
});

receive connection, listen for messages, broadcast them


io.on('connection', function (socket){
    socket.on('message', function (data){
      io.sockets.send(data);
    });
});

message handler and broadcaster for the server


@@ -14,6 +14,12 @@ var server = http.createServer(app);

 var io = sio.listen(server);

+io.on('connection', function (socket){
+    socket.on('message', function (data){
+      io.sockets.send(data);
+    });
+});
+
 server.listen(3000, function (err) {
     if (err) return console.log(err);
 });

client

index.html


               <!DOCTYPE html>
 <html>
   <body>
+    <h1>socket.io chat example for node.js budapest</h1>
+    <h3 id="status"></h3>
+    <ul id="messages"></ul>
+
+    <input type="text" />
+    <button>send</button>
     <script src="/socket.io/socket.io.js"></script>
     <script src="/client.js"></script>
   </body>

client.js


@@ -1 +1,32 @@
-var socket = io.connect();
\ No newline at end of file
+var socket = io.connect(),
+    messagesEl = document.querySelector('#messages'),
+    statusEl = document.querySelector('#status'),
+    textEl = document.querySelector('input'),
+    sendBtnEl = document.querySelector('button'),
+    me = prompt('tell me your name sunshine, you\'d be grateful');
+
+[ 'connect', 'reconnect', 'connecting', 'disconnect' ].forEach(function( evName ){
+  socket.on( evName, function(){
+    statusEl.textContent = evName;
+  });
+});
+
+socket.on('message', addMessage);
+
+sendBtnEl.addEventListener('click', function(){
+  var text = ( textEl.value||'' ).trim();
+  var date = new Date();
+  socket.send(JSON.stringify({
+    from: me,
+    text: text,
+    date: date.getHours() + ':' + date.getMinutes()
+  }));
+  textEl.value = '';
+}, false);
+
+function addMessage(data){
+  var message = JSON.parse(data);
+  var li = document.createElement('li');
+  li.innerHTML = message.from + ':' + message.text + ' (at ' + message.date + ')';
+  messagesEl.appendChild( li );
+}
</coding>

so far so good...BUT

heap

FATAL ERROR: CALL_AND_RETRY_2 Allocation failed - process out of memory
--max-old-space-size

GC

garbage collector

no problem, we are going to scale socket.io...

ohhh socket.io has built-in redis store to do the scaling, which will be awesome (you hope that)

how RedisStore works

there are lot of good looking servers, i would connect to one of them

client
servers

let's connect to the first one

server1 broadcasts:

FYI: a client (name it foobar) connected to me, I stored everything in redis and this is currently know about it:


{
    "id": "foobar",
    "name": "awesome minion"
}

I'll let you know if something happen between us

using redis and node's built-in cluster ain't that much fun.

[...]cmd=subscribe scheduled to be closed ASAP for overcoming of output buffer limits.

ps: nodejs cluster works on the same machine

scale out w/o RedisStore

That's the fun thing :)

scaling out - problems

  • which proxy to use? (haproxy, nginx, http-proxy) (BalanceBattle)
  • sticky sessions
  • pubsub layer

by scaling out you'll get

  • lof of fucks, for sure
  • awesome perfomance (or not)
  • you can dynamically turn on/off your instances

monitor your app

npm install -g nodetime
npm install -g nodefly (strongops)
npm install -g node-webkit-agent

awesome, charts and etc

these are using your resources to submit the metrics

performance monitoring at its best meet DTrace and flamegraphs

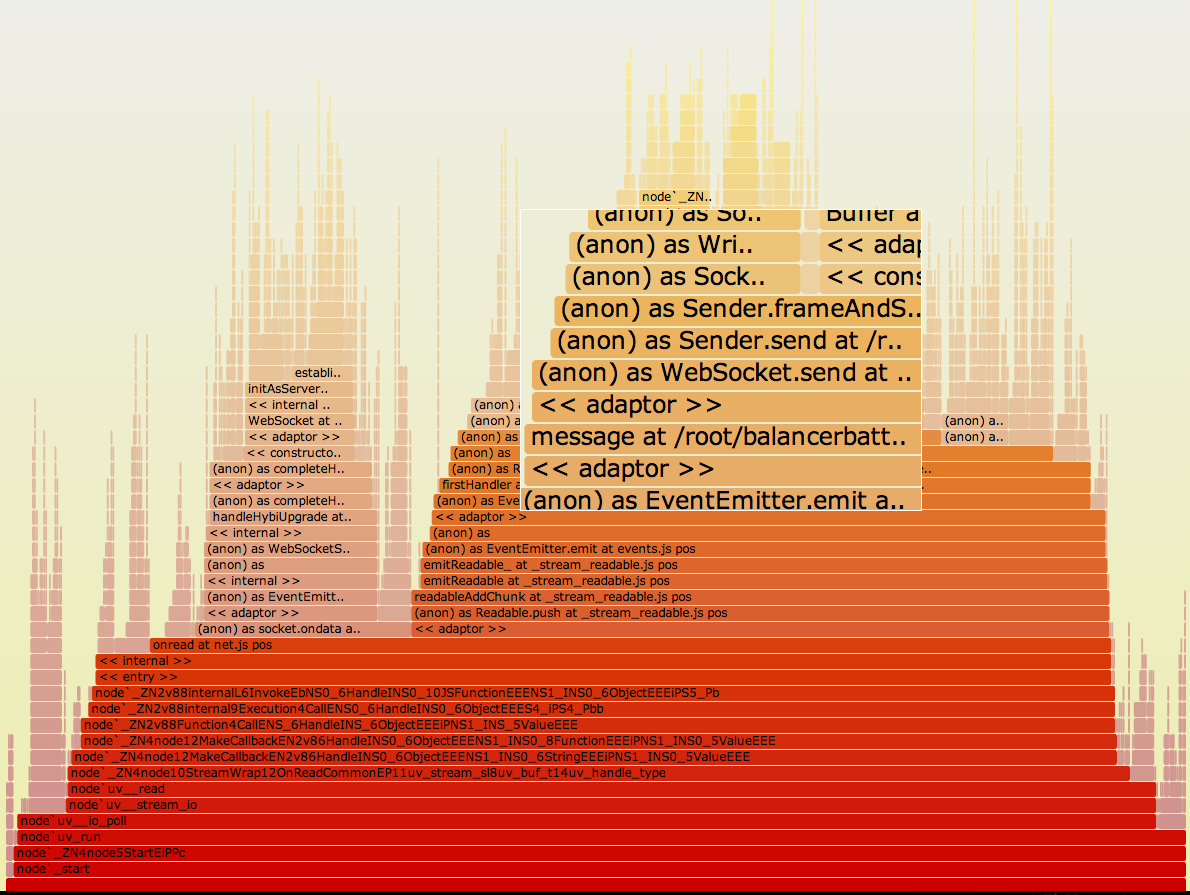

flamegraph

original svg

...and don't forget the heap.

  • find memory leaks
  • monitor the number of sent and received messages (and latency and actually everything)
  • CLEAN UP THE BUFFER

why not socket.io

  • warn - client not handshaken client should reconnect
  • socket.io-client is optimistic
  • huge amount of connect / reconnect

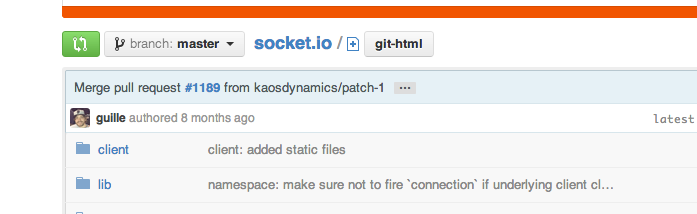

ohh and hasn't been upgraded for 8 months

alternatives

resources
